PR1-25.6V12Ah
Product Description
Product Features
FAQ
Product Tags
Key Takeaways
- 25.6V 12Ah (307.2Wh) LiFePO₄ rack-mount ups battery with 8S · 8 parallel strings configuration.
- 45A continuous discharge and 60 (5 s) peak/protection current.
- 11-year design life for long service intervals.
- 438 × 450 × 44 mm and 7.3 kg, IP21 rated.
- UL1973 / IEC62619 / UN38.3 compliance.

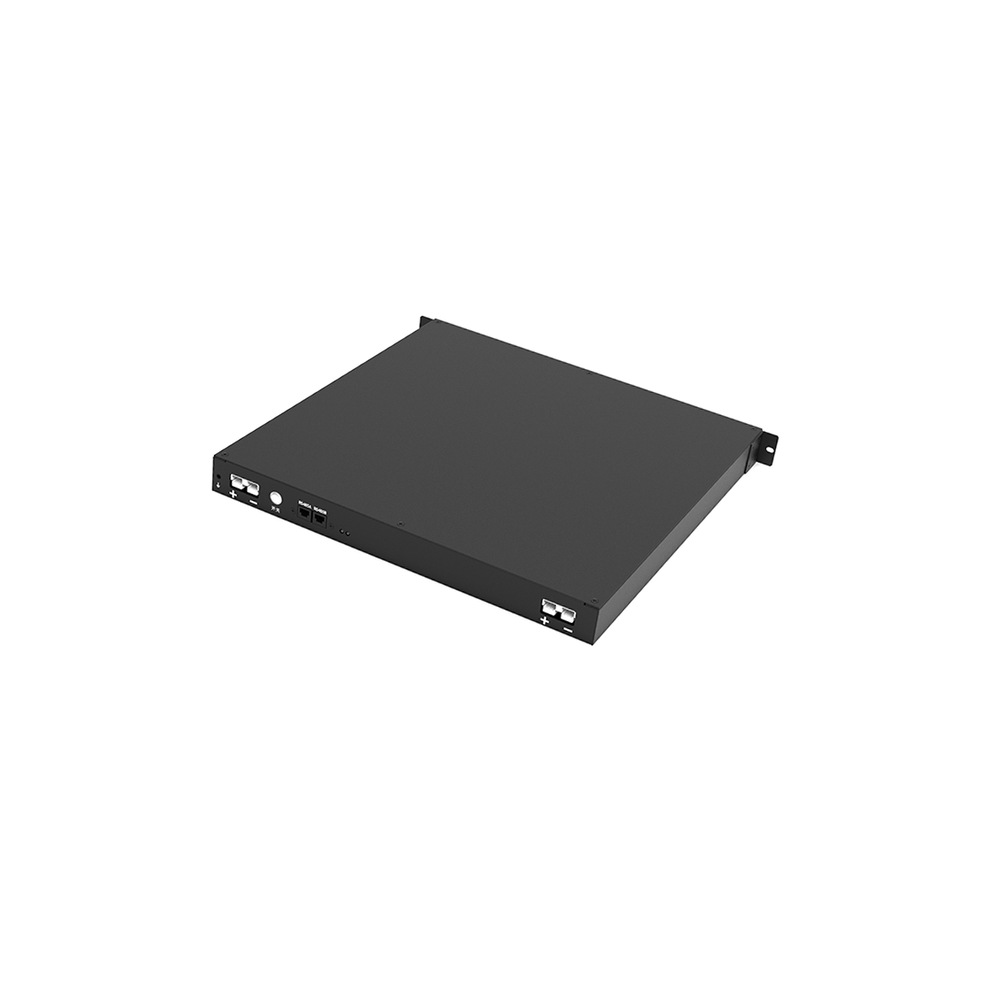

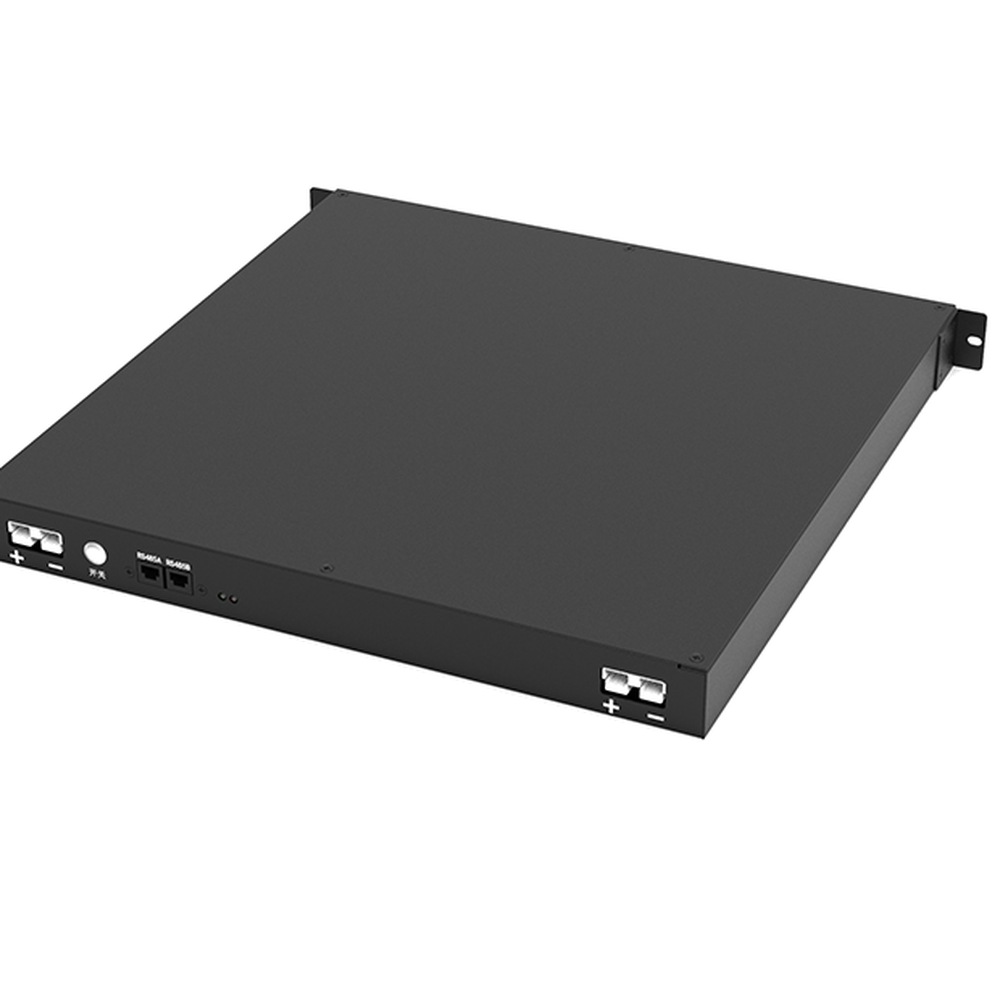

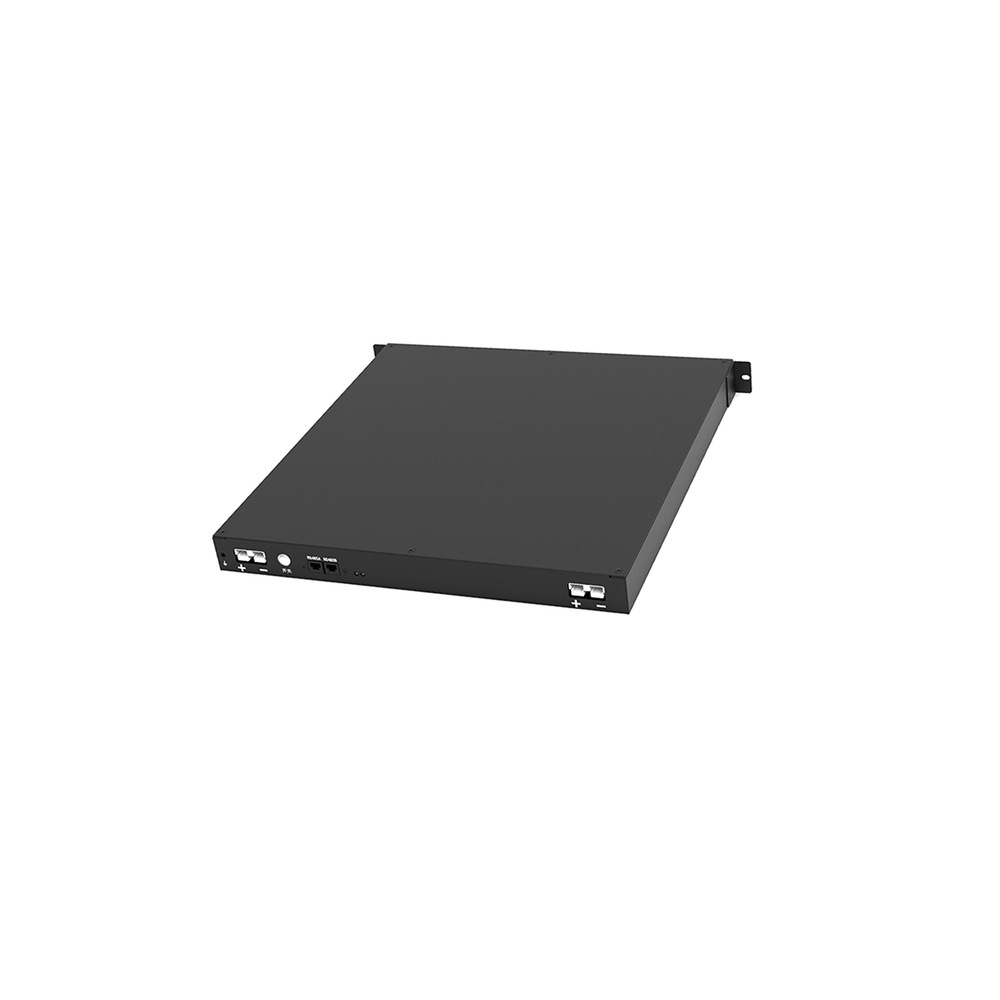

Construction & BMS
The pack is built in a 1U steel chassis with rack terminals. The integrated BMS provides over-charge, over-discharge, over-current, short-circuit and over-temperature protection, with cell balancing for long string life.
- 1u steel chassis — mechanical protection and mounting
- rack terminals — low-resistance connection
- Integrated BMS with cell balancing
- Batch-level cell traceability
Electrical Performance
25.6V nominal and 12Ah (307.2Wh) give predictable runtime for servers. Continuous discharge is 45A and maximum charge is 12A.
- 25.6V nominal / 12Ah
- 45A continuous discharge
- 12A maximum charge
- 8S · 8 parallel strings configuration
Reliability & Temperature
11-year design life and a charge window of 0 to +45 °C with discharge from −20 to +60 °C make the pack suitable for continuous duty. UL1973 / IEC62619 / UN38.3 compliance supports global deployment.
- 11-year design life
- Charge 0 to +45 °C
- Discharge −20 to +60 °C
- UL1973 / IEC62619 / UN38.3
Technical Specifications
| Mechanical | |
|---|---|
| Case material | 1u steel chassis |
| Dimensions | 438 × 450 × 44 mm |
| Weight | 7.3 kg |
| Terminals | rack terminals |
| IP rating | IP21 |
| Electrical | |
|---|---|
| Model | PR1-25.6V12Ah |
| Chemistry | LiFePO₄ (LFP) |
| Nominal voltage | 25.6 V |
| Nominal capacity | 12 Ah |
| Energy | 307.2 Wh |
| Configuration | 8S · 8 parallel strings |
| Max charge current | 12 A |
| Continuous discharge | 45 A |
| Peak / protection | 60 (5 s) A |
| Charge temperature | 0 to +45 °C |
| Discharge temperature | −20 to +60 °C |
| Service life | 11-year design life |
| Communication | RS485 / CAN |
| Compliance | UL1973 / IEC62619 / UN38.3 |
Application Scenarios
One rack-mount ups battery platform for servers, storage devices, network equipment.
Storage & Reliability
Store the pack at −20 to +45 °C in a dry environment, away from direct sunlight. Avoid deep discharge during long storage and recharge every three months.
