IFR26650-25D
Product Description
Product Features
FAQ
Product Tags
Key Takeaways
- −40 °C to +60 °C discharge for outdoor cabinets, motorcycles and cold-climate equipment.
- 80C pulse (200A for 10 s) and 50C continuous (125A) from a 2,500mAh can.
- −20 °C charging without an external heating system.
- ≥2,000 cycles at 100% DOD, 96Wh/kg and 83 ± 2 g.
- UL1642 · UL2054 · UL1973 · IEC62133 · UN38.3 · RoHS · REACH compliance, produced under IATF 16949 and ISO 9001 quality systems.
Cell Structure & Build

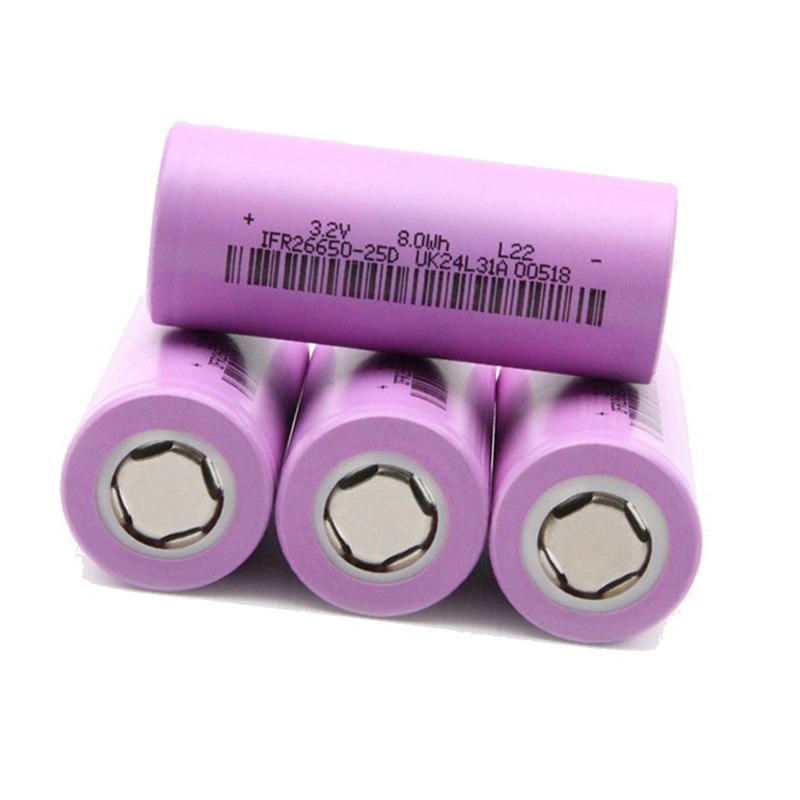

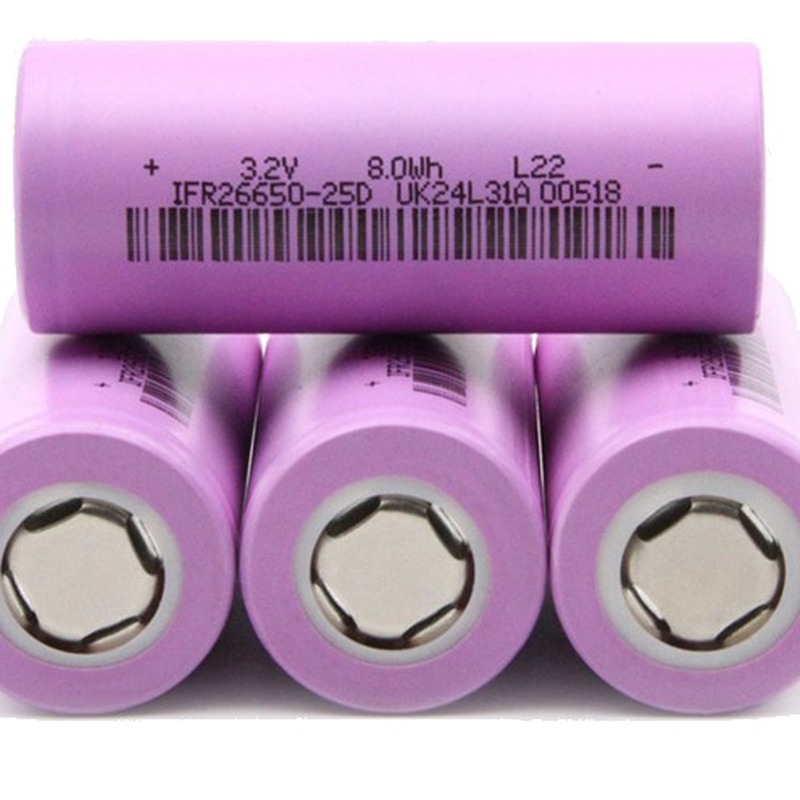

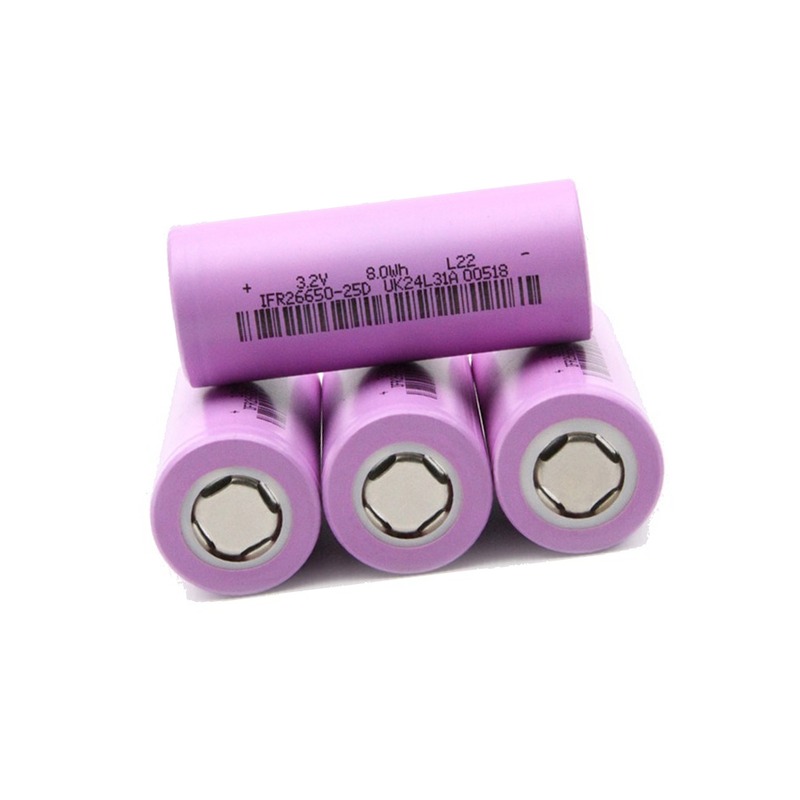

The IFR26650-25D uses a nickel-plated stainless-steel can with PET shrink film and laser-welded terminals. At 83 ± 2 g and ≤6mΩ it is built to deliver high current in cold conditions without excessive heating.
- Nickel-plated steel can + PET film — mechanical protection and insulation
- Laser-welded terminals — low-resistance joints for high-current duty
- 83 ± 2 g — consistent weight for PACK balancing
- Batch-level traceability — from raw material to finished cell
Low-Temperature Performance
Discharge is rated from −40 °C to +60 °C and charging from −20 °C, so packs keep working in winter mobility, outdoor telecom cabinets and unheated storage. Cold-weather capacity depends on current and cut-off voltage — ask PLB for temperature-specific discharge data.
- −40 °C to +60 °C discharge window
- −20 °C charging supported
- Stable voltage at high current
- Suitable for outdoor cabinets and winter mobility
High-Rate & Cycle Life
The cell delivers 125A continuous and 200A for 10 seconds, covering motorcycle cranking and UPS transfer. Cycle testing confirms ≥2,000 cycles at 100% depth of discharge in the 2,500mAh, 96Wh/kg format.
- 50C continuous / 80C 10-second pulse
- ≤6mΩ internal resistance
- 96Wh/kg energy density
- ≥2,000 cycles at 100% DOD
Technical Specifications
| Mechanical | |
|---|---|
| Shape | Cylindrical |
| Case material | Nickel-plated stainless steel + PET shrink film |
| Diameter | 26.3 ± 0.2 mm (max 26.5 mm) |
| Height | 65.2 ± 0.3 mm (max 65.5 mm) |
| Weight | 83 ± 2 g |
| Electrical | |
|---|---|
| Model | IFR26650-25D |
| Chemistry | LiFePO₄ (LFP) |
| Nominal capacity | 2.5 Ah (2,500 mAh) |
| Nominal voltage | 3.2 V |
| Internal resistance | ≤6 mΩ |
| Standard charge | 1C (2,500 mA) |
| Max continuous charge | 5C (12,500 mA) |
| Standard discharge | 1C (2,500 mA) |
| Max continuous discharge | 50C (125,000 mA) |
| 10-second pulse | 200,000 mA |
| Charge temperature | −20 to +60 °C |
| Discharge temperature | −40 to +60 °C |
| Cycle life | ≥2,000 @100% DOD |
| Energy density | 96 Wh/kg |
| Compliance | UL1642 / UL2054 / UL1973 / IEC62133 / UN38.3 / RoHS / REACH |
Application Scenarios
One low-temperature cell platform for cold, outdoor and high-current equipment.
Storage & Reliability
Store the cell at −20 to +45 °C in a dry environment, away from direct sunlight. Long-term storage above +45 °C accelerates calendar ageing; model-specific capacity-retention and recovery figures are available in the datasheet.
Compliance references: UL 1642 / 2054 / 1973 · IEC 62133 / 62619 · UN38.3 transport testing.
