Key Takeaways
- 25.6V 60Ah (1536Wh) LiFePO₄ agv battery pack with 8S20P configuration.
- 60A continuous discharge and 80 (BMS) peak/protection current.
- ≥2,000 cycles for long service intervals.
- 451 × 440 × 177 mm and 30 kg, IP42 rated.
- UN38.3 compliance.
Construction & BMS

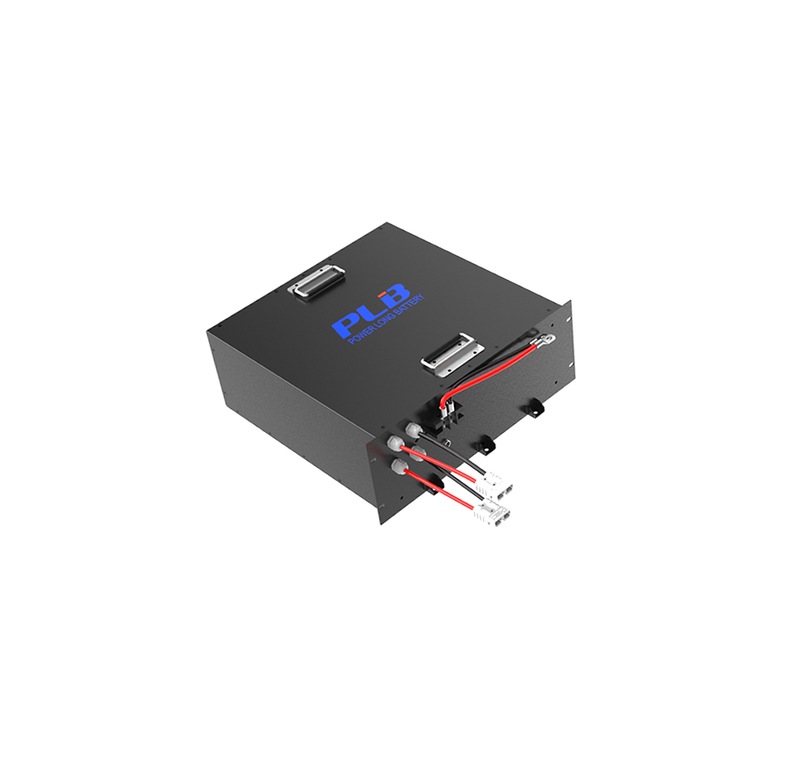

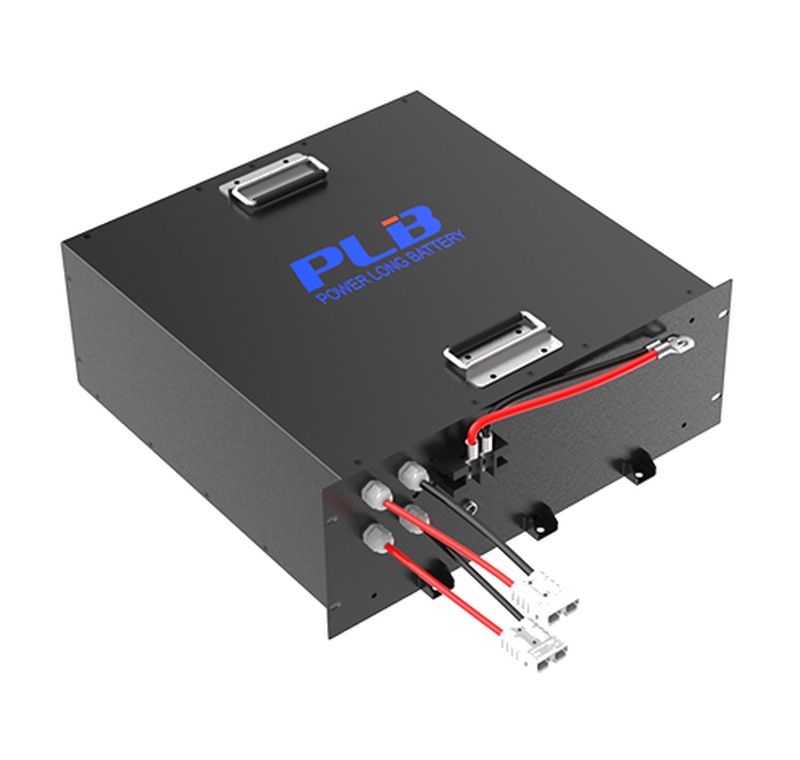

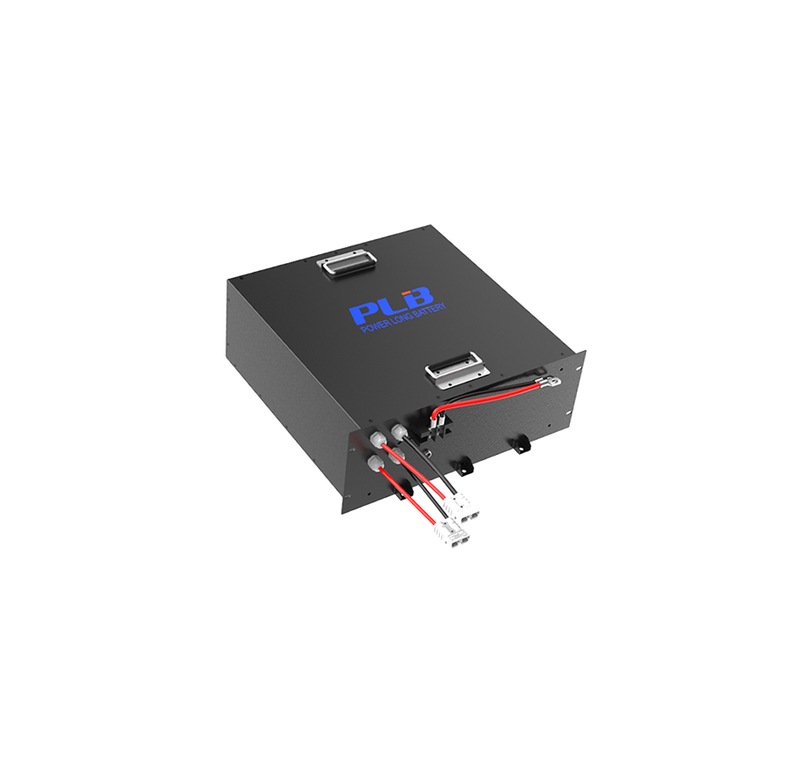

The pack is built in a SPCC sheet-metal enclosure with 5557-4R / Anderson SB50. The integrated BMS provides over-charge, over-discharge, over-current, short-circuit and over-temperature protection, with cell balancing for long string life.
- Spcc sheet-metal enclosure — mechanical protection and mounting
- 5557-4R / Anderson SB50 — low-resistance connection
- Integrated BMS with cell balancing
- Batch-level cell traceability
Electrical Performance
25.6V nominal and 60Ah (1536Wh) give predictable runtime for agv. Continuous discharge is 60A and maximum charge is 60A, with ≤30 mΩ internal resistance.
- 25.6V nominal / 60Ah
- 60A continuous discharge
- 60A maximum charge
- 8S20P configuration
Reliability & Temperature
≥2,000 cycles and a charge window of 0 to +45 °C with discharge from −20 to +60 °C make the pack suitable for continuous duty. UN38.3 compliance supports global deployment.
- ≥2,000 cycles
- Charge 0 to +45 °C
- Discharge −20 to +60 °C
- UN38.3
Technical Specifications
| Mechanical | |
|---|---|
| Case material | Spcc sheet-metal enclosure |
| Dimensions | 451 × 440 × 177 mm |
| Weight | 30 kg |
| Terminals | 5557-4R / Anderson SB50 |
| IP rating | IP42 |
| Electrical | |
|---|---|
| Model | AGV-25.6V60Ah |
| Chemistry | LiFePO₄ (LFP) |
| Nominal voltage | 25.6 V |
| Nominal capacity | 60 Ah |
| Energy | 1536 Wh |
| Configuration | 8S20P |
| Max charge current | 60 A |
| Continuous discharge | 60 A |
| Peak / protection | 80 (BMS) A |
| Internal resistance | ≤30 mΩ |
| Charge temperature | 0 to +45 °C |
| Discharge temperature | −20 to +60 °C |
| Service life | ≥2,000 cycles |
| Communication | RS485 |
| Compliance | UN38.3 |
Application Scenarios
One agv battery pack platform for agv, amr, automated forklifts.
Storage & Reliability
Store the pack at −5 to +45 °C in a dry environment, away from direct sunlight. Avoid deep discharge during long storage and recharge every three months.
